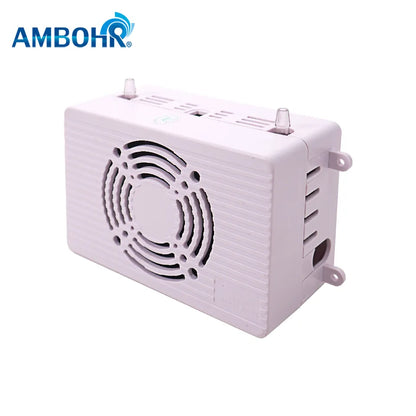

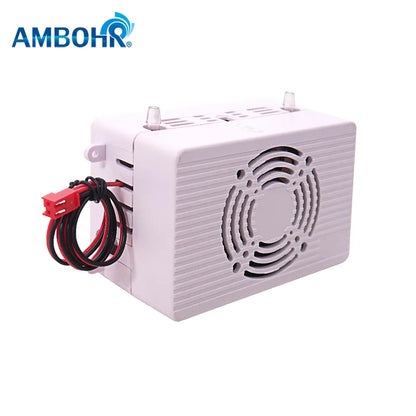

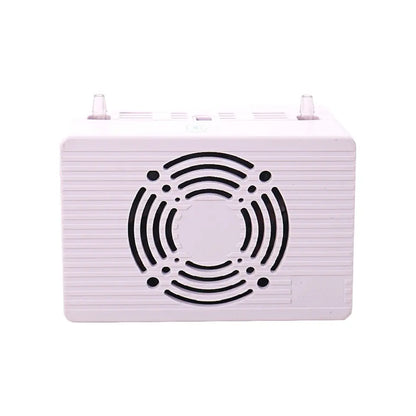

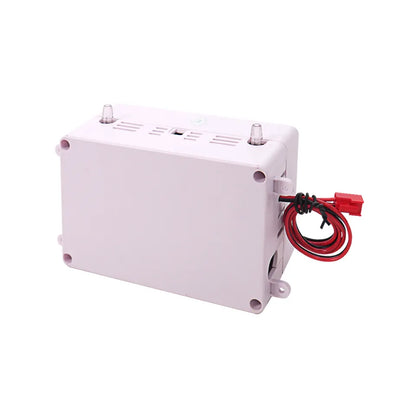

Ambohr CDM-523F Ozone Purifier Generator Module Water Treatment for swimming pool and purify water quality

Ambohr CDM-523F Ozone Purifier Generator Module Water Treatment for swimming pool and purify water quality

$59.88 USD
$65.00 USD $59.88 USD
Sale Sold out

Product Description:

AMBOHR CDM-523F New Portable Intergrated Home Use Air Purifier Ozone Generator Tube for Swimming Pool Drinking Water


The CDM range of ozone generators has been designed by AMBOHR, a 20+ year leader in the reliability of ozone generator controls.
The AMBOHR ozone generator battery adopts the patented ozone core discharge, including the integrated design of the ozone
generator tube and the ozone drive circuit, which can provide stable and efficient output, and is easy to install and maintain.
These compact ozone generators are specially created to withstand the harsh environment of any machine. Our small ozone generators
have a smaller footprint and also save energy. The electrical packs of AMBOHR ozone generators are epoxy which
protects them from harsh corrosive environments and can produce stable ozone output over a wide temperature range.

Features:

1. Widely used in high volume
2. Reliable quality
3. Stable and efficient output
4. Integrated design of ozone ceramics and ozone
power supply
5. Using "high frequency ceramic creep discharge" to generate ozone technology benefit
6. Efficient broad-spectrum
sterilization
7. Good dispersion
8. No ozone residue and secondary pollution. Low noise and long service life.
9. Extra thick inlet/outlet barbs to prevent breakage. No air gaps, no exposed contacts,
no corrosion.

Product Specifications:

Model
CDM-523F
Ozone output
400-800 mg/hr@ Air
Generating Method
Corona Discharge
Electric
DC12V, DC24V, AC12V, AC24V, AC110V, AC220V, 12W
Ozone Output Method
Release into the air directly
Case
Flame Retardant Plastic
Circuit Dimension
4.7”*3.1”*2.4”(119 x 79 x 61 mm)
Installation Dim
5.2*2.2”(131*55mm)
Net Weight
0.84 lb (0.38 kg)
