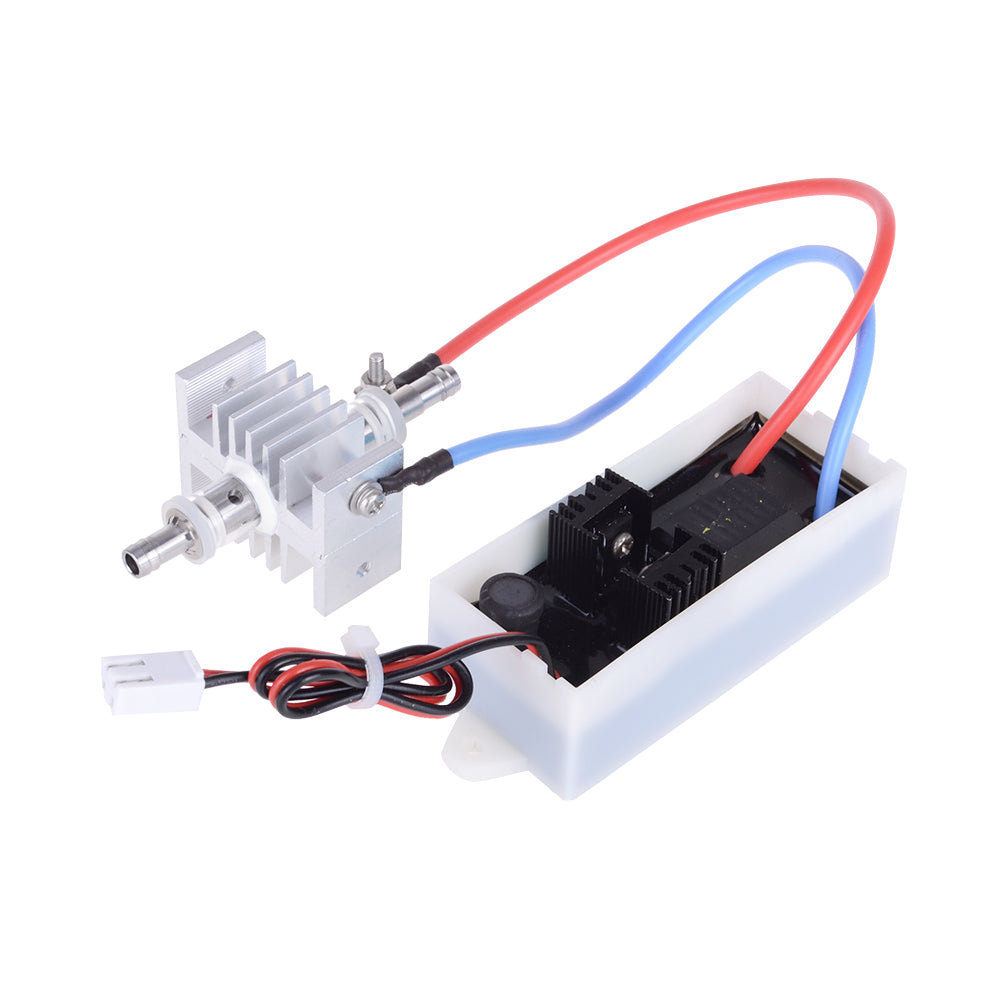

AMBOHR CDT-D200 12V DC 10g/h air cooling ceramic ozone generator module 200 mg/h ceramic ozone generator cell

Eat and drink healthy with this beautiful multi-purpose ozone purifier.

Description

Functions & Features.

• CDT-D200 produces powerful oxidants.
• CDT-D200 isinfects water & air by killing viruses and biological contaminants.
• CDT-D200 reduces the use of chemical levels which means it saves you money
• CDT-D200  Low power consumption.
• Designed & tested specially for Water and Air.
• Available in AC12V, 24V,110V-120V, 220-240V, DC12V, 24V, 7W
• CE, & CQC  certified.

OUTSTANDING TECHNICAL PROPERTIES.

• Powerful fan, effectively control the temperature of ozone generator
• Able to connect with air dryer through air inlet to increase ozone output
• Low noise
• Long working life

• ozone generator electrical pack  epoxy potted
• Extra thick inlet/outlet barb to prevent breakage
• No air gaps, no exposed contacts & no corrosion.
• Increase cooling hole and cooling fan
• Integrated design two in one unit with driving circuit and ozone generator tube.

COMPREHENSIVE PROTECTION.

AMBOHR ozone generator-your best health assistant!
Every one of us needs clean water, pure air, and non-toxic food, because only in this way can we live healthily and happily.

Specification & Packaging

Specifications:

Material: Flame Retardant Plastic

Weight: 0.37 lb (0.17 kg)

Product Dimensions: 3.9”*1.4”*1.2”(100*35*30mm); 2.9”*1.6”*1.2”(73.6*40*30 mm)

Installation Dim: 3.5"(90 mm)

Voltage:  DC12V 6W

Power:  6W

Ozone output: 200 mg/H with air source of 1.0L/min, RH 20%, 25℃

Application: Car, Hotel, Commercial, Household,

Generating method: Corona discharge
