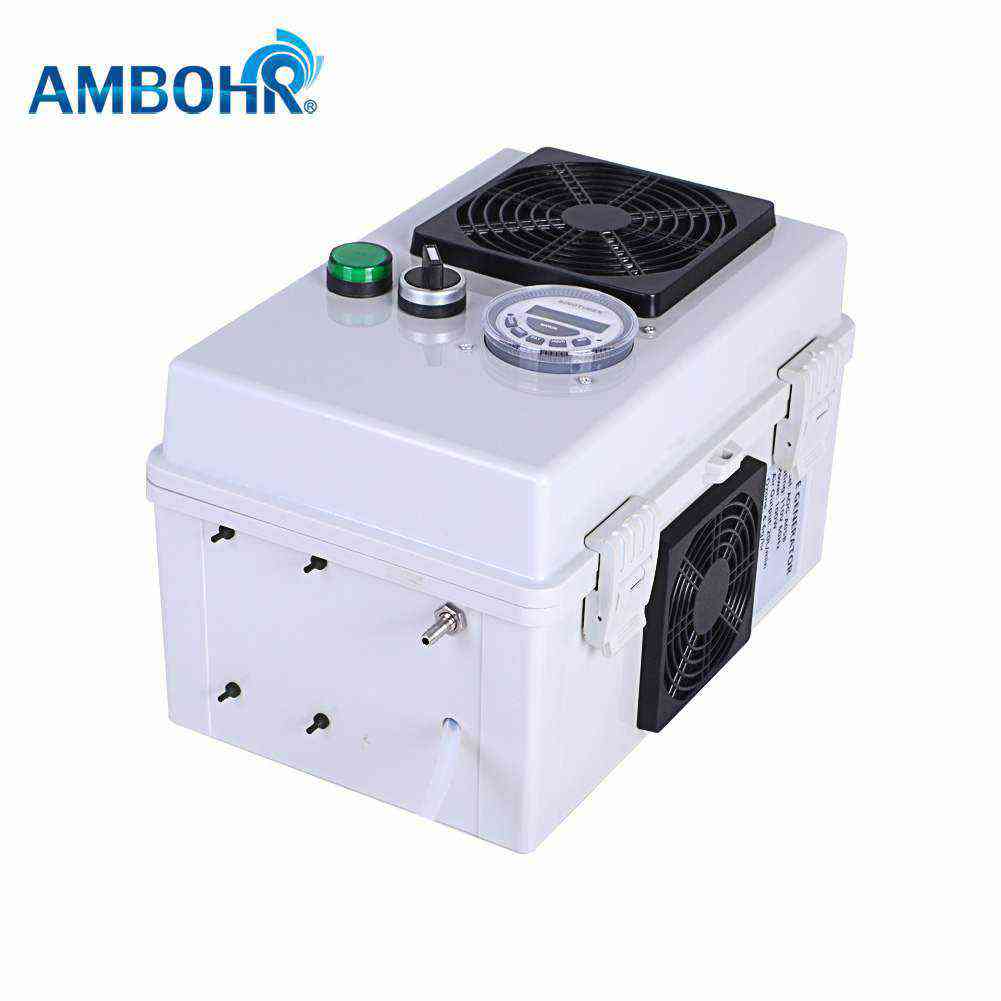

AOG-A05BC Industrial Air Source Ozone Generator Small Vegetable Ozone Generator Production Fresh Water

Product Desription:

Ambohr air source ozone generator ABS waterproof box is wall-mounted or mobile, which can be used for air sterilization and elimination of odors; it can also be mixed into water for disinfection and purification by aeration; it can be utlized to formulate the ozone solution for small water treatment and air treatment.It complete ozone system including air pump, ozone module, control, etc. Air-cooled cooling method, which is simple and reliable to operation, convenient to maintenance. An external oxygen source can provide high concentrations of ozone.

Product Features:

• Can produce powerful oxidants.
• Can provide different voltages of DC12V, 120V 60Hz, 240V 50/60Hz.
• Can provide a variety of timer options.
• Housing made of UV/ozone resistant plastic.
• Wall-mounted or mobile chassis, easy to install and maintain, simple to operate.
• The high-performance tubular ozone core module can work continuously, and the built-in air pump meets the requirements of low-concentration ozone.
• Ozone can be passed into the water to make ozonated water for disinfection or to sterilize water, and the use of high-efficiency mixing device can increase the concentration of ozone in water.

Product Specifications:

• Model: AOG-A05BC
• Voltage: DC12V, 110V-120VAC, 220-240VAC, 50/60HZ
• Power: 100W
• Ozone amount: 4-6 g/hr
• 0.01ppm space m³: 16-24
• Water volumn L/H: 2000-3000
• Control: 168h timer
• Product size mm: 300*200*179
• Air pump module: AP-MP26
• Ozone module: CDT-E08V
• Remark: power code,silicone tube, air stone, manual

Product Application:

Main Functions:

Ozone disinfection application area is wide and high-efficiency : it has a strong killing effect on Escherichia coli, Staphylococcus aureus, fungi, and stubborn hepatitis B virus.

Good diffusion of ozone disinfection: fully contact with bacteria and viruses in the air, no sanitation dead corners, fresh air.

Ozone disinfection has no secondary pollution: excess ozone will be naturally decomposed into oxygen after disinfection, no residue, no secondary pollution.

The Range of Application

Sterilization and disinfection: food factories, water tanks, sterile clean rooms, laboratories, laundry rooms...

Deodorization and mildew removal: basements, garages, storage rooms, hotels, entertainment venues...

Industrial use: environmental test chamber, cutting fluid treatment agent...
